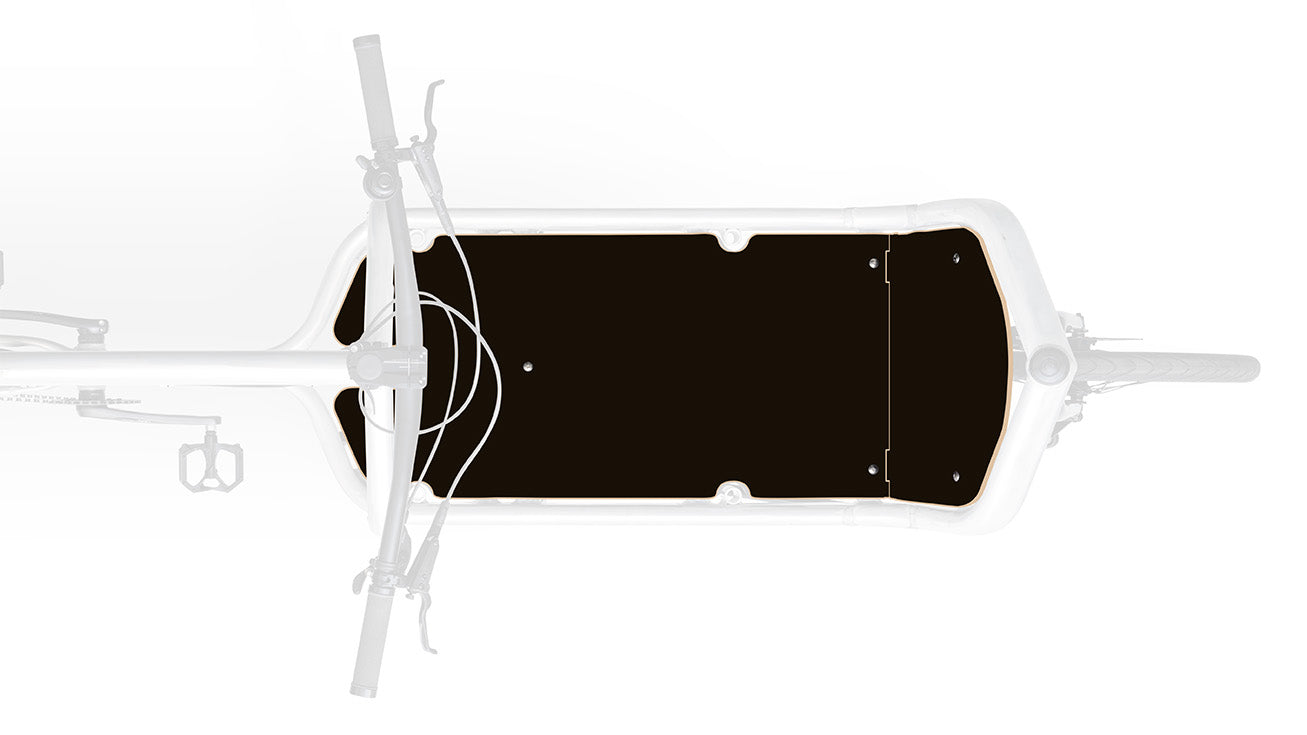

Hardus Plywood Deck

Hardus weather-resistant film-faced plywood board, made for Bullitt.

• Brand: Hardus
• Material: Plywood, Birch
• Thickness: 9.2mm
• Content:
  • Base plate
  • Front plate
  • 5x Bolts
  • 5x Washers
  • 5x Locknuts


• Tools required for installation:
  • 1x Wide flat-head screwdriver
  • 1x 10mm wrench
  • 1x assembly grease
• Installation guide:

1. Position the baseplate: Place the baseplate onto the cargo area. The plate is identical on both sides, so there is no specific "up" or "down."
2. Attach the front plate: Position the front plate so the tabs slot into the corresponding holes in the baseplate. This plate is also identical on both sides.
3. Prepare the hardware: Apply a small amount of grease to all bolts.
4. Mount them loosely into the baseplate and front plate. Ensure the hardware is installed in this order:Bolt (through the plate) → Washer → Locknut.
5. Secure the front: Tighten the 2 bolts on the front plate to 4-5 Nm.
6. Align the baseplate: Push the baseplate backward until it meets solid resistance. While holding it in this position, tighten the rear bolt to 4-5 Nm.
7. Final tightening: Finally, tighten the 2 front bolts on the baseplate to 4-5 Nm. Your kit is now fully mounted
