By Larry vs Harry

Bullitt X Bluebird

SKU: 35060011
In stock
19.080,00 kr

Price is excluding shipping and mounting. Learn more
Description

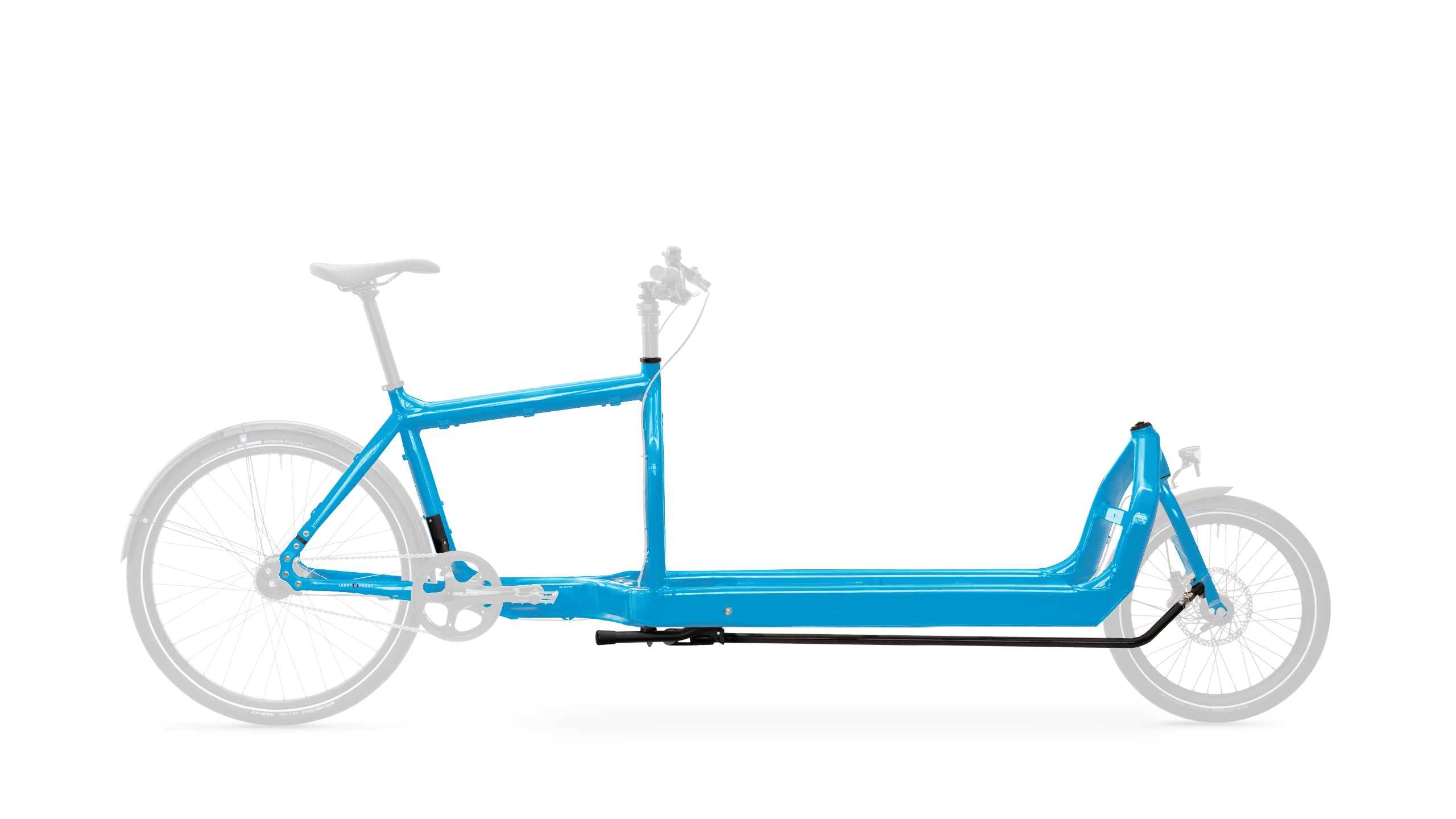

The Bullitt X – the extended-frame cargo bike that offers increased capacity while maintaining the agility and performance synonymous with all Bullitts.
Tested and rated to carry a maximum weight of 180kg.

Remember to add your desired dropout kit.

Please note: Image is for illustration purposes only, this purchase is just for the framekit.
Technical Specifications

Frame: 7005 T6 Aluminium frame featuring opening for Gates Carbondrive
Coating: Powder coated with two layers of clearcoat (except Raw – which is unpainted)
Total length: 2650mm (complete bike)
Frame width: 460mm
Frame weight: 13.5kg (frame, fork and kickstand)
Seattube diameter: 31.6mm
Bottom bracket: Threaded 68mm
Dropout options: 135mm and 142mm options for internal or external gearing
Front fork: Chromoly fork with IS disk mount tab and tapered steerer
Also includes:

  • Headset(44/56mm inset, 1 ⅛” external diameter)
  • Topcaps
  • Kickstand
  • Steerer arm with rubber covered balljoint
  • Steering rod
  • Satori Easyup stemlifter

Total load capacity: 180kg including rider
Manufacturer

Larry vs Harry ApS
Esromgade 15, st. opgang 2
2200 Copenhagen N
Denmark
info@larryvsharry.com
View details

Add Dropouts

View all
Quick buy
Larry vs Harry
Coaster Brake Dropout Kit
470,00 kr
Quick buy
Larry vs Harry
Gates Internal Gearing Dropout kit
500,00 kr
Quick buy
Larry vs Harry
Internal Gearing Dropout Kit
330,00 kr
Quick buy
Larry vs Harry
External, 135mm, w/ front derailleur mount, Dropout Kit
470,00 kr
Quick buy
Larry vs Harry
Dropout, external gear for Frame Kit, 135mm axle w/o front derailleur mount
460,00 kr
Quick buy
Larry vs Harry
External 142mm Axle Dropout Kit (for XT 12)
470,00 kr

Manuals for Framekits

Original Bullitt & Bullitt X

The Bullitt X is essentially the same as the Original – only with a longer cargo area and steering arm! Follow the same procedures to assemble and care for your Bullitt X as for your Original pedal-powered Bullitt!

Please note that you will not need to assemble anything when you receive a complete Bullitt from an official Bullitt dealer. However, you can use the assembly instructions for guidance if you need to make changes to the setup on your Bullitt at a later point – or if you buy your Bullitt as a framekit.

Original Bullitt Assembly Manual
The written guide to assembling your Original Bullitt

Original Bullitt Assembly Checklist
This checklist can be printed and used to make sure you have everything you need if you are assembling your Original Bullitt yourself

Headset Assembly Manual
Detailed assembly manual for the Bullitt front headset

Video: How To Install The Steering Arm
Detailed instruction on how to install and adjust the steering arm

Shimano Manual – UM-5XZ0A-006-ENG
Rear derailleur manual for XT 12 speed and Deore 20 speed external gearing

Shimano Manual – UM-5NL0A-008-ENG
Front derailleur manual for Deore 20 speed external gearing

Shimano Manual – UM-3FJ0A-003-ENG
Internal geared hub manual for Nexus & Alfine internal gearing
