Features & Specs
Frame
Fit & Adjustments
Standard Length Cargo Platform
Drive Unit
The Shimano EP600 drive unit is designed for riders who need solid, dependable power without stepping into flagship territory. With up to 85 Nm of torque and assist up to 25km/h, it delivers confident support on climbs, in traffic, and when today’s cargo is on the heavier side.
Built on the same platform as Shimano’s top EP units, it benefits from improved heat management, quicker responsiveness, and full E-Tube Project tuning options. It’s a capable, efficient drive system that brings high-end performance closer to reach.
Battery Capacity
The EP600 is available with three battery sizes: 418 Wh, 504 Wh or 630 Wh, all from Shimano.
Wh (watt-hours) is simply a measure of how much energy the battery can store. More Wh means more assisted riding between charges – everything else being equal.
How long a charge lasts depends on many factors, such as the assist level, weather conditions, load and terrain.
The 418 Wh battery suits shorter distances, commuting within the city or those who can recharge at regular intervals.
The 504 Wh battery suits slightly longer distances or commutes in more hilly terrain.
The 630 Wh battery adds extra capacity for longer days, heavier loads, or less frequent charging.

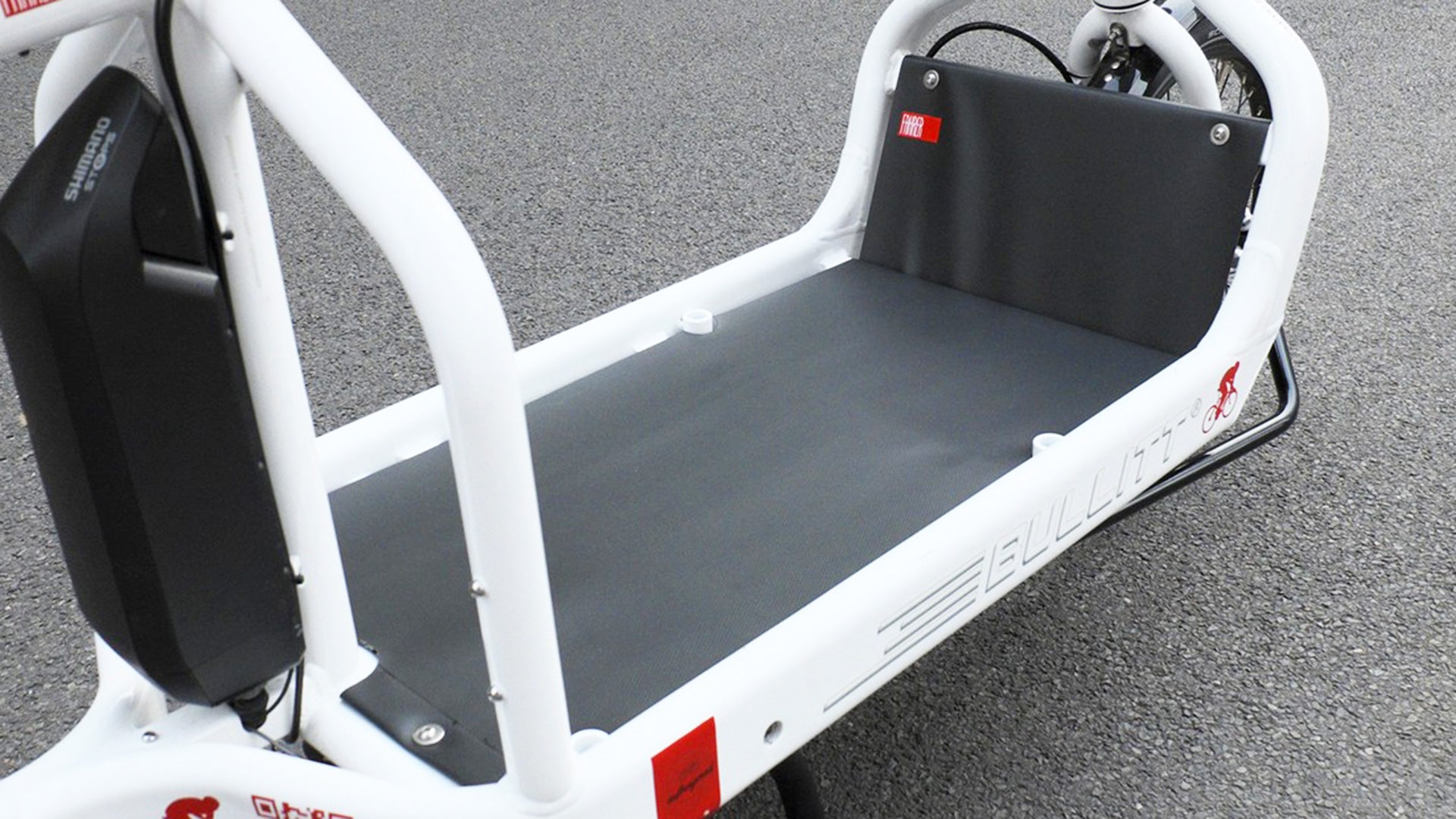

All batteries are mounted on the steering tube and are locked using a high quality lock cylinder from ABUS, that can be paired with other One Key ABUS bike locks. They use the same 36 V system, and deliver the same performance on the bike. The choice doesn’t change how the EP600 rides – only how long it keeps assisting before it’s time to recharge.
Brakes
Extended Warranty

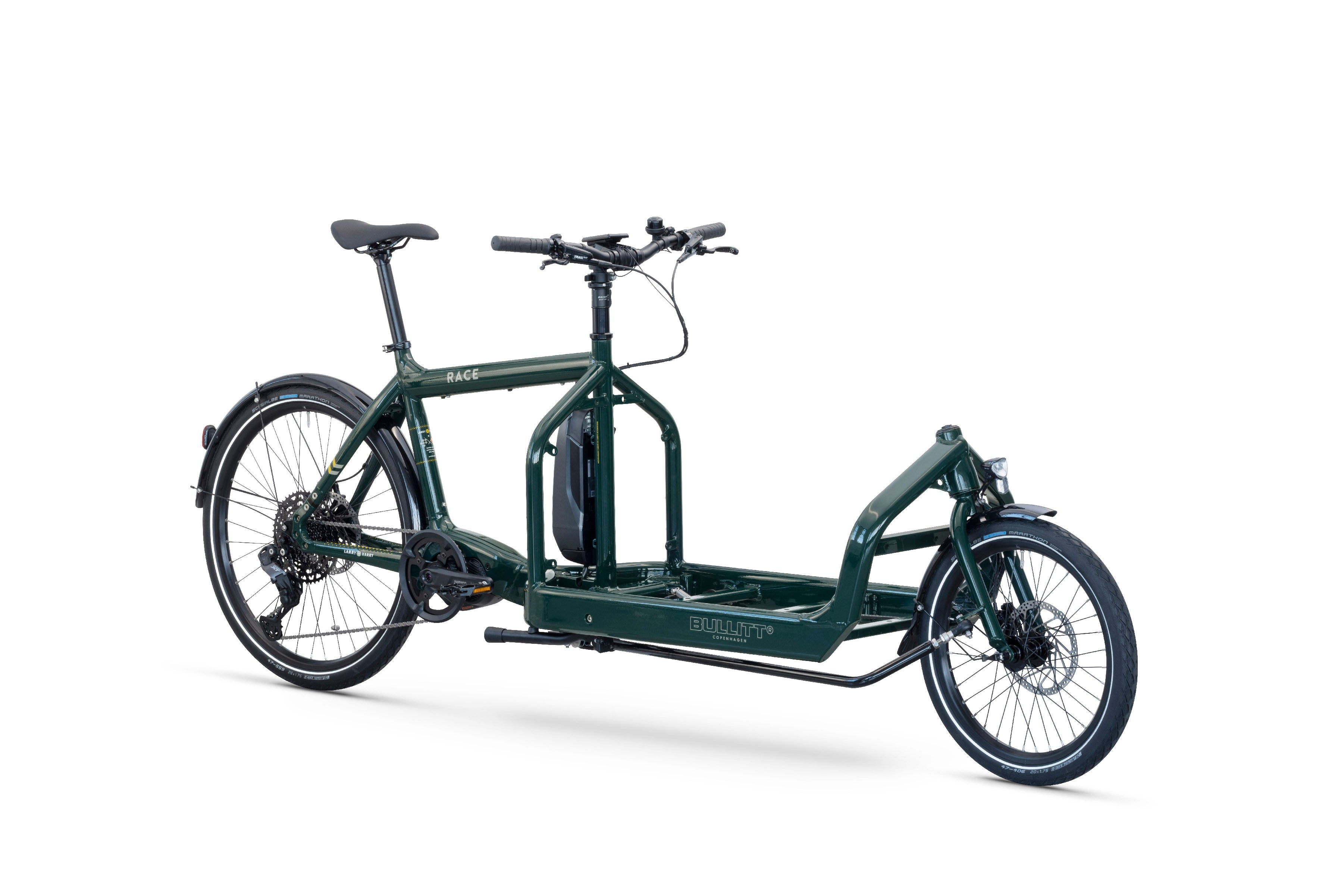

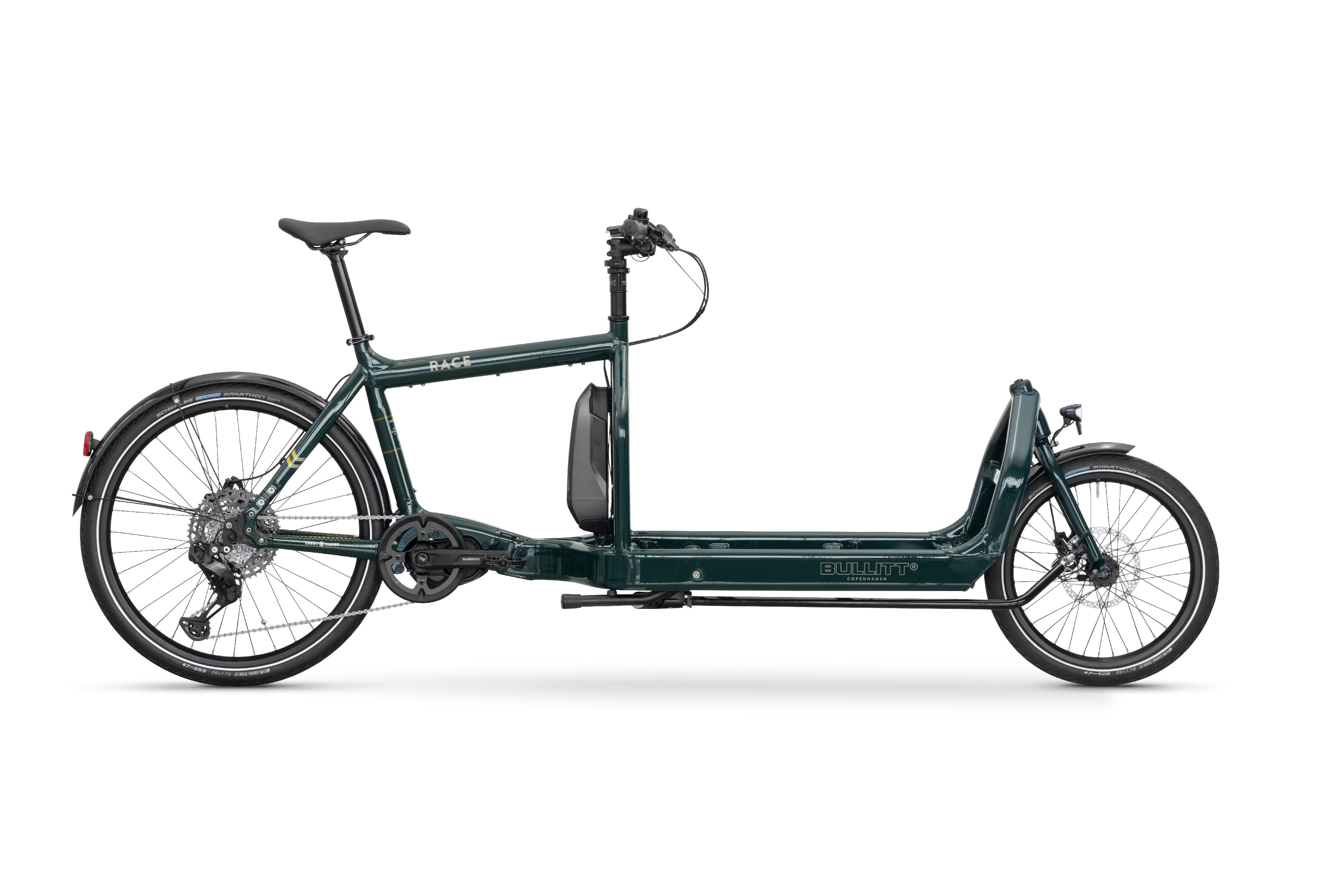

eBullitt EP600

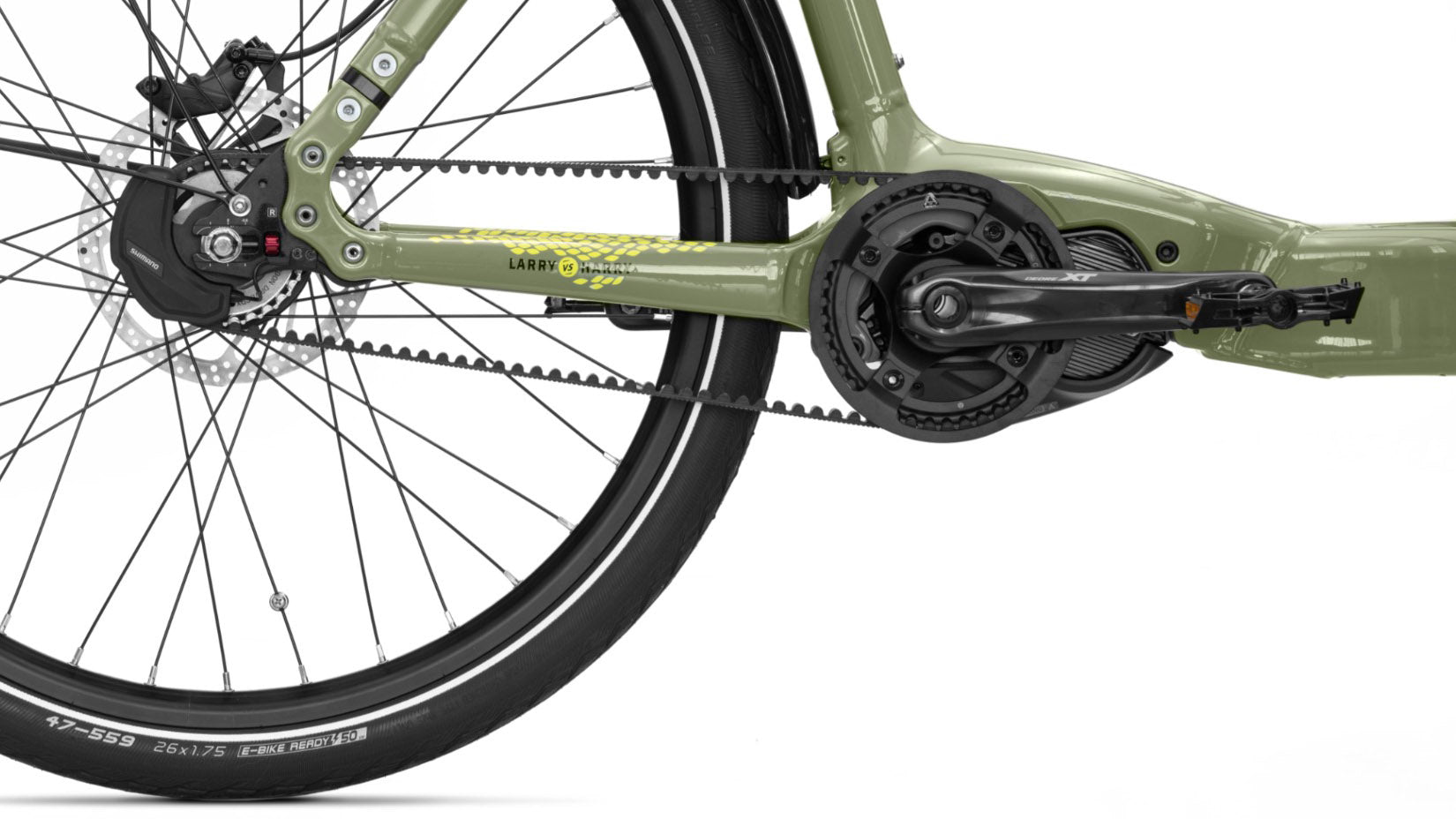

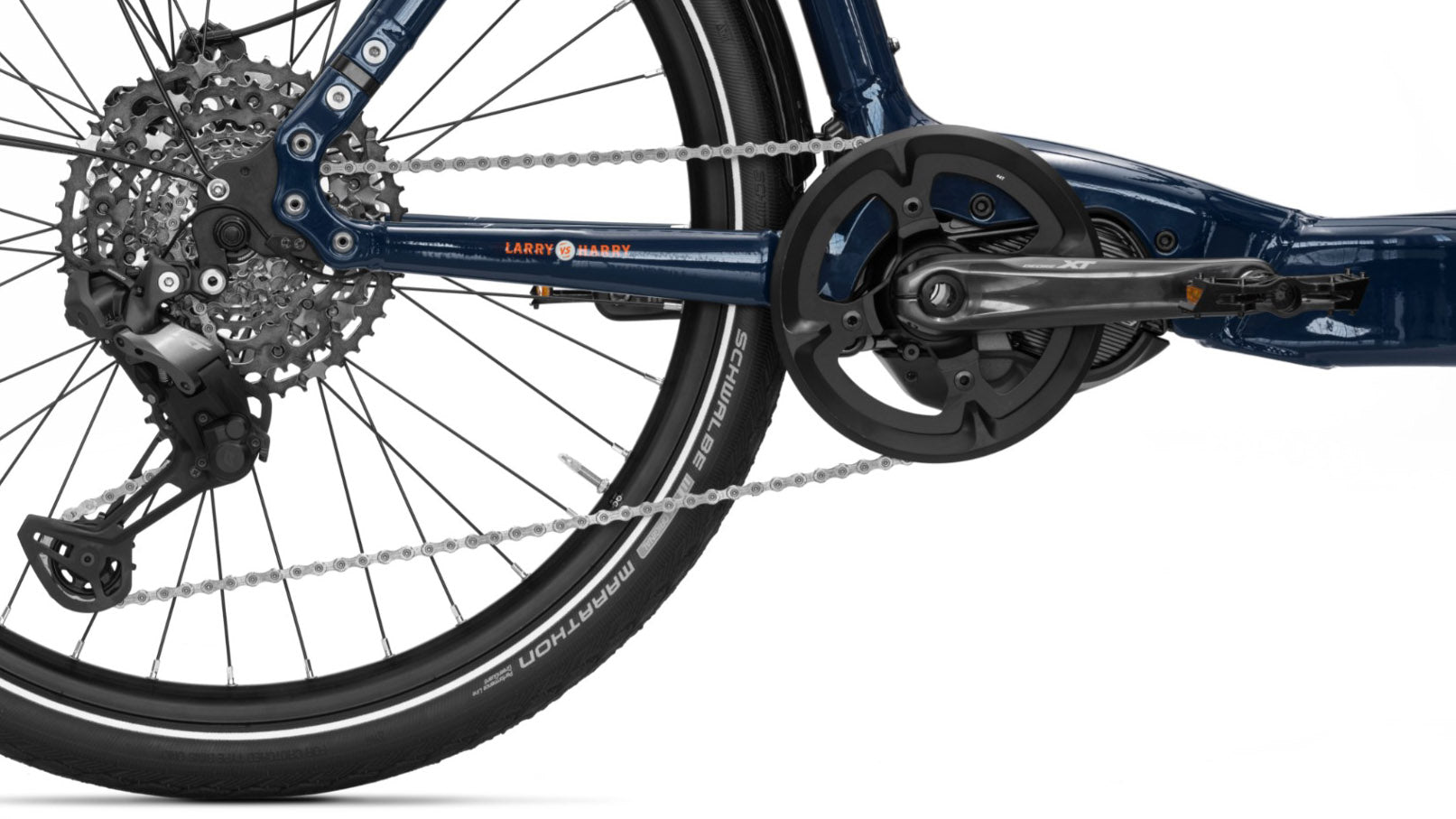

Gearing options
Technical specifications
Last updated
2430mm
710mm
460mm
27 kg
204 kg
Read more about how this is calculated
T6 heat-treated, 7005 aluminium, designed for Shimano STePS motor
LARRY VS HARRY Chromoly steel fork with tapered steerer tube
1 ¼" FSA Orbit XII , 1 ½" tapered 1 ¼"
LARRY VS HARRY 22mm chromoly steel steering arm w/ balljoint & machined fittings
LARRY VS HARRY Aluminium dropouts, machined and replaceable (type depending on choice of gearing)
LARRY VS HARRY Aluminium Kickstand with replaceable feet
SATORI Easy-Up w/ 100mm of adjustment
SHIMANO STePS EP600
SHIMANO FC-EM600 175mm
25 km/h
85 Nm
SHIMANO BT-EN604 (418Wh) or BT-EN605 (504Wh)
SHIMANO 4 amp charger EC-E8004

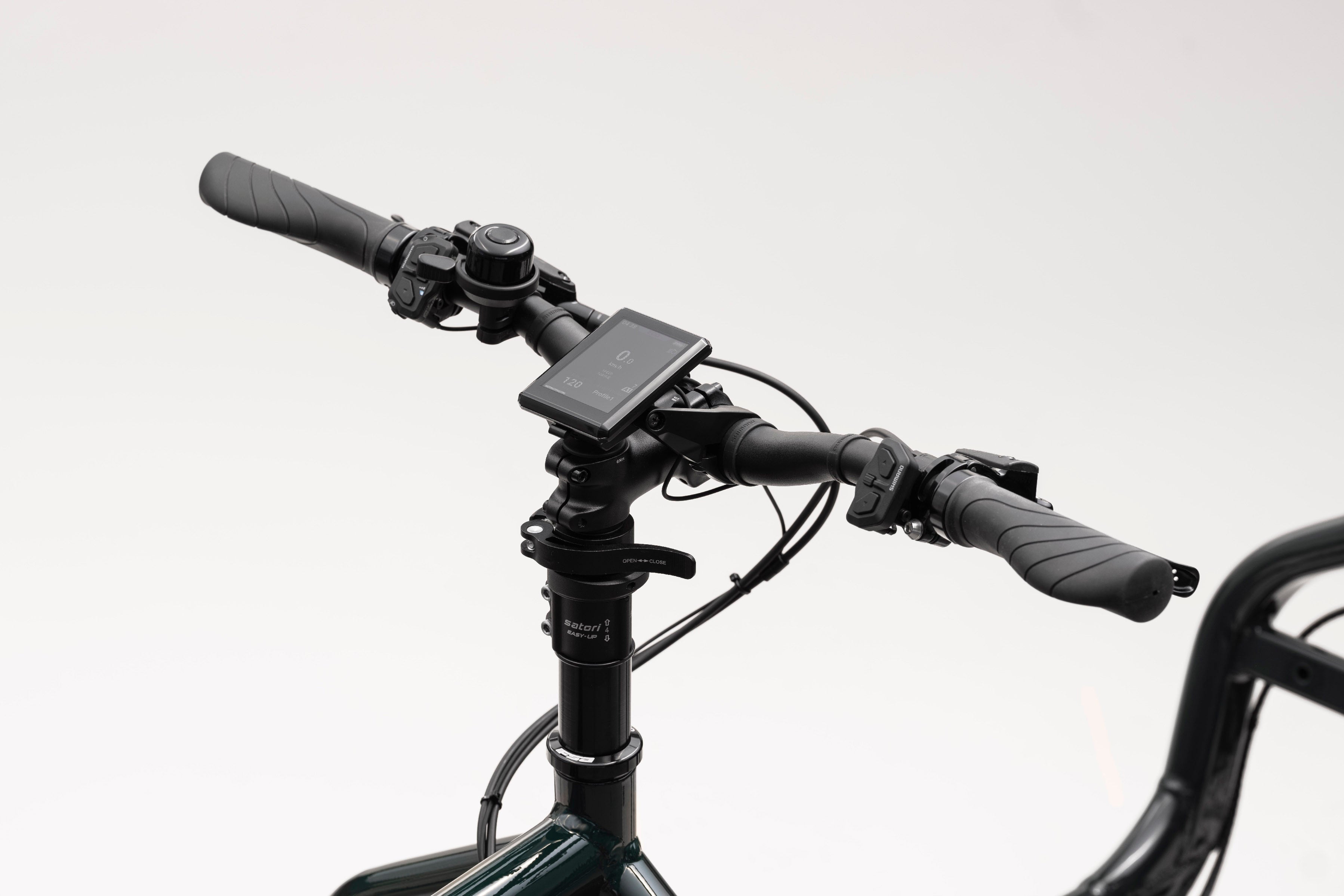

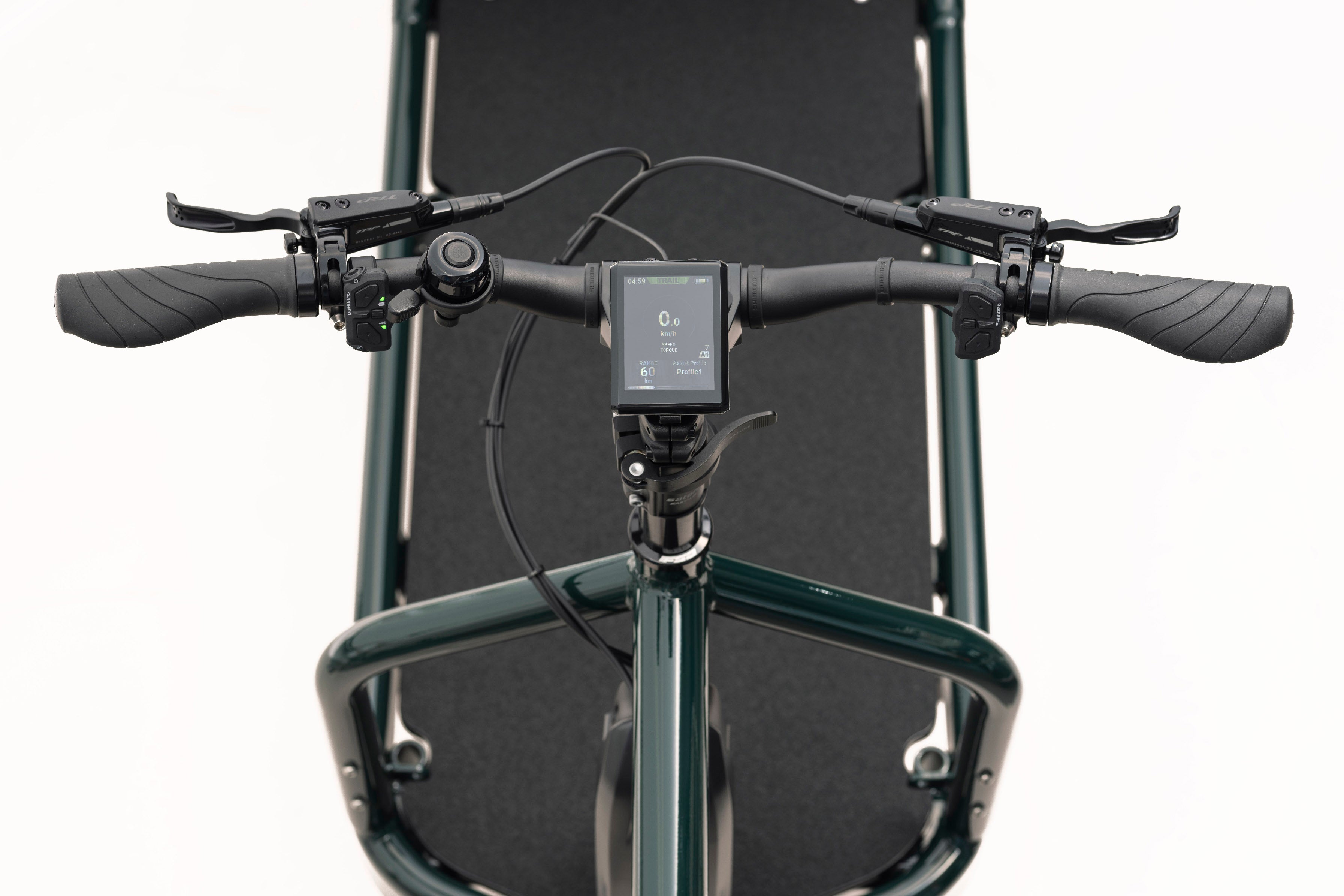

SHIMANO display SC-EM800
SHIMANO Switch Units SW-EN600-L or SW-EM800-L & SW-EN600-R

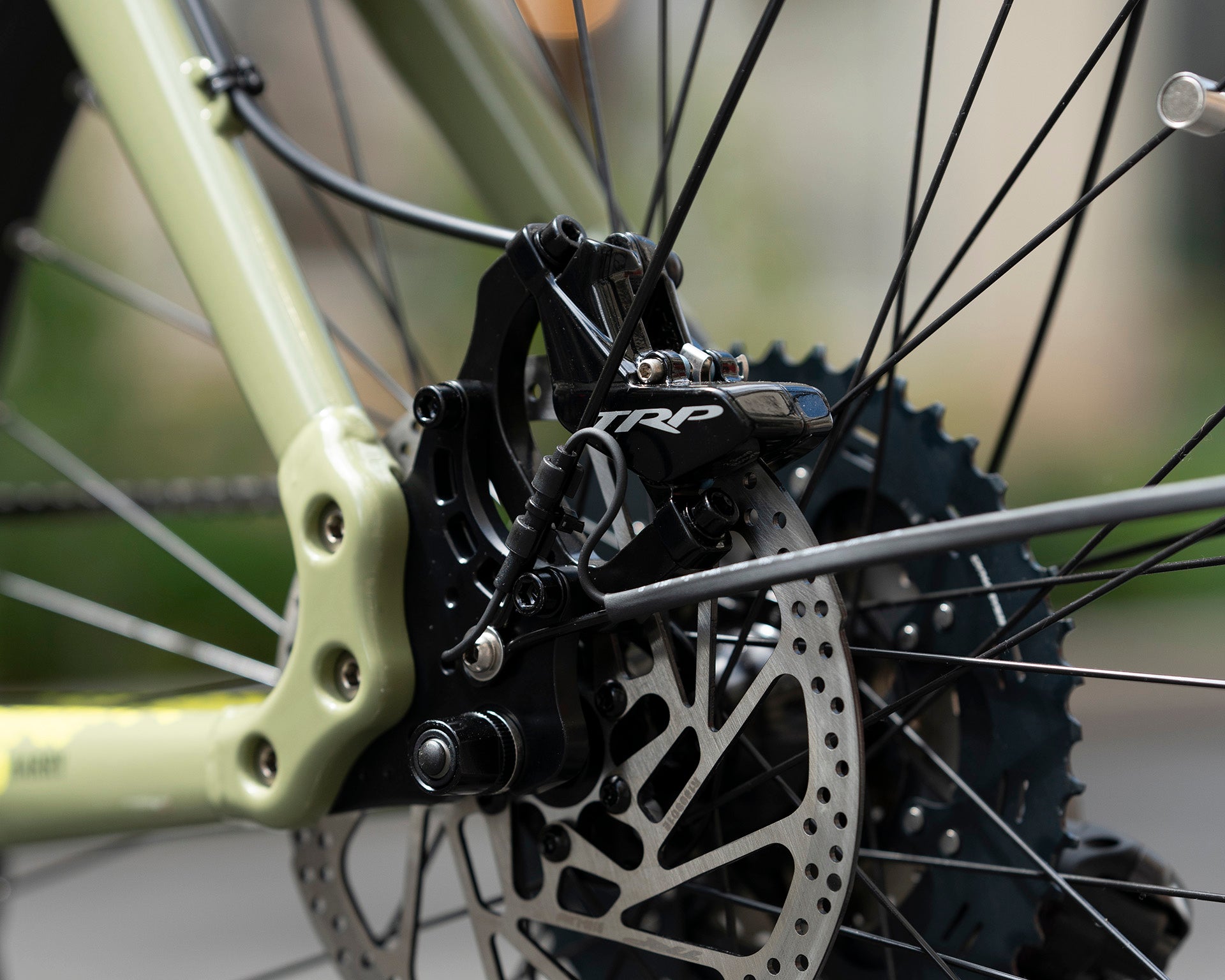

TRP Trail EVO e-MTB HD-M843 w 180mm/2.3mm rotors
NOVATEC hub, O.L.D. 10x100mm, laced to ALEXRIMS FR32 36h
SCHWALBE Marathon 20” and 26” x 1.75”
LARRY VS HARRY Brass Japanese Wind Bell, black
BUSCH & MÜLLER Lumotec front light and Secuzed rear light
