Features & Specs
Frame
Fit & Adjustments
X length Bullitt platform
Drive Unit
The Shimano EP801 drive unit is the most advanced drive unit in the EP line-up, delivering powerful, responsive support with up to 85 Nm of torque and assist up to 25km/h. Optimized for demanding use, it offers enhanced heat management, faster data processing, and compatibility with a broader range of components – including CAN-based accessories.
With refined pedal assist and full E-Tube Project customisation, the EP801 gives riders complete control over how power is delivered. It’s a top-tier choice for commercial riders and anyone seeking maximum performance under load or on varied terrain.
Battery Capacity
The EP801 is available with two battery sizes: 504 Wh or 630 Wh, both from Shimano.
Wh (watt-hours) is simply a measure of how much energy the battery can store. More Wh means more assisted riding between charges – everything else being equal.
How long a charge lasts depends on many factors, such as the assist level, weather conditions, load and terrain.
The 504 Wh battery is lighter and suits shorter distances, fixed daily routes or more frequent recharging.
The 630 Wh battery adds extra capacity for longer days, heavier loads, or less frequent charging.
All batteries are mounted on the steering tube and are locked using a high quality lock cylinder from ABUS, that can be paired with other One Key ABUS bike locks. They use the same 36 V system, and deliver the same performance on the bike. The choice doesn’t change how the EP801 rides – only how long it keeps assisting before it’s time to recharge.
Brakes
Extended Warranty

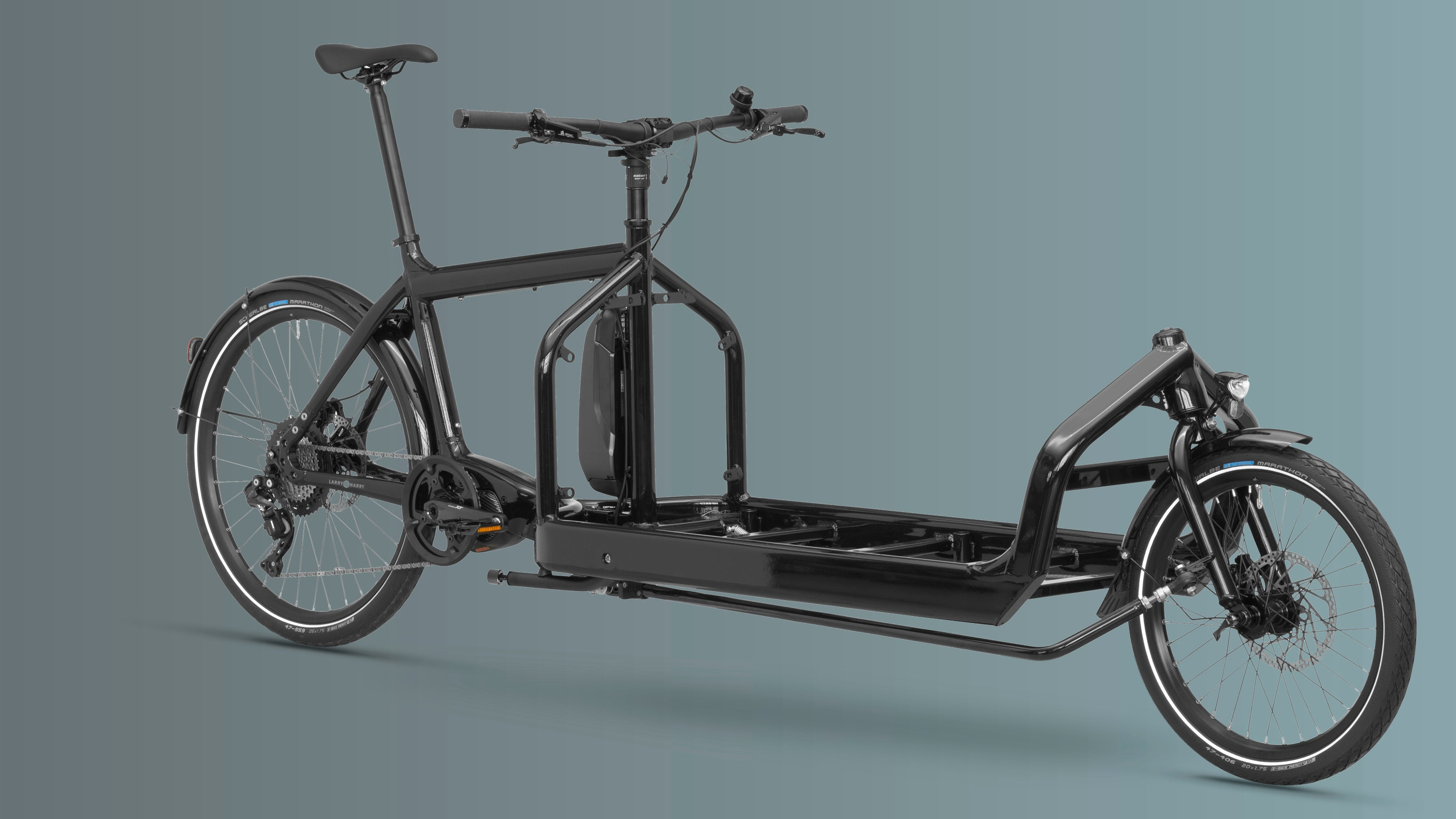

Clean Look, Ready for Work
The eBullitt X features a stripped-back graphic design, created with commercial use in mind. Clean lines and minimal branding give the frame a professional look and leave room for custom decals or logos. It’s a practical choice for businesses—and a subtle, understated take on the classic Bullitt aesthetic.

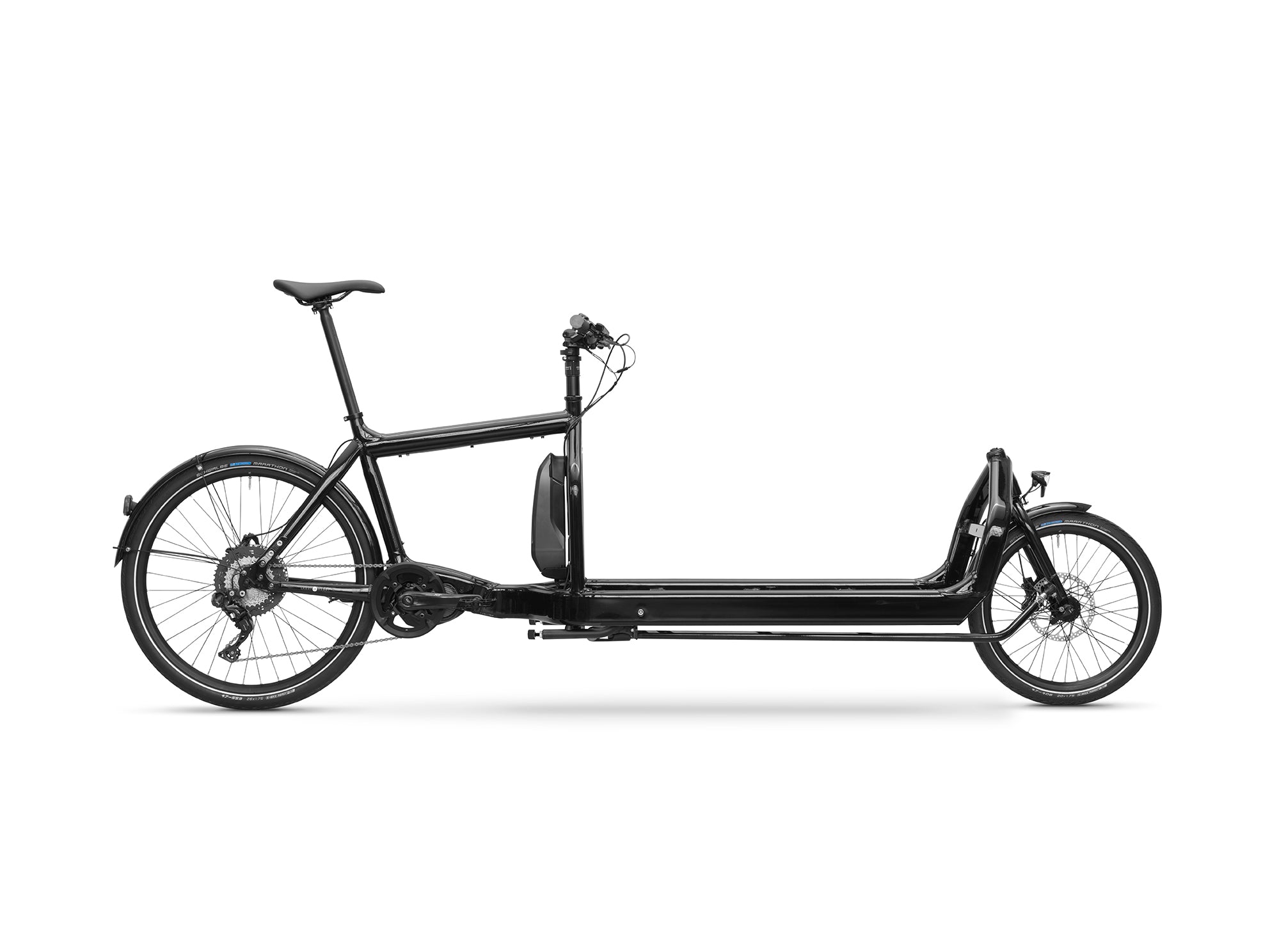

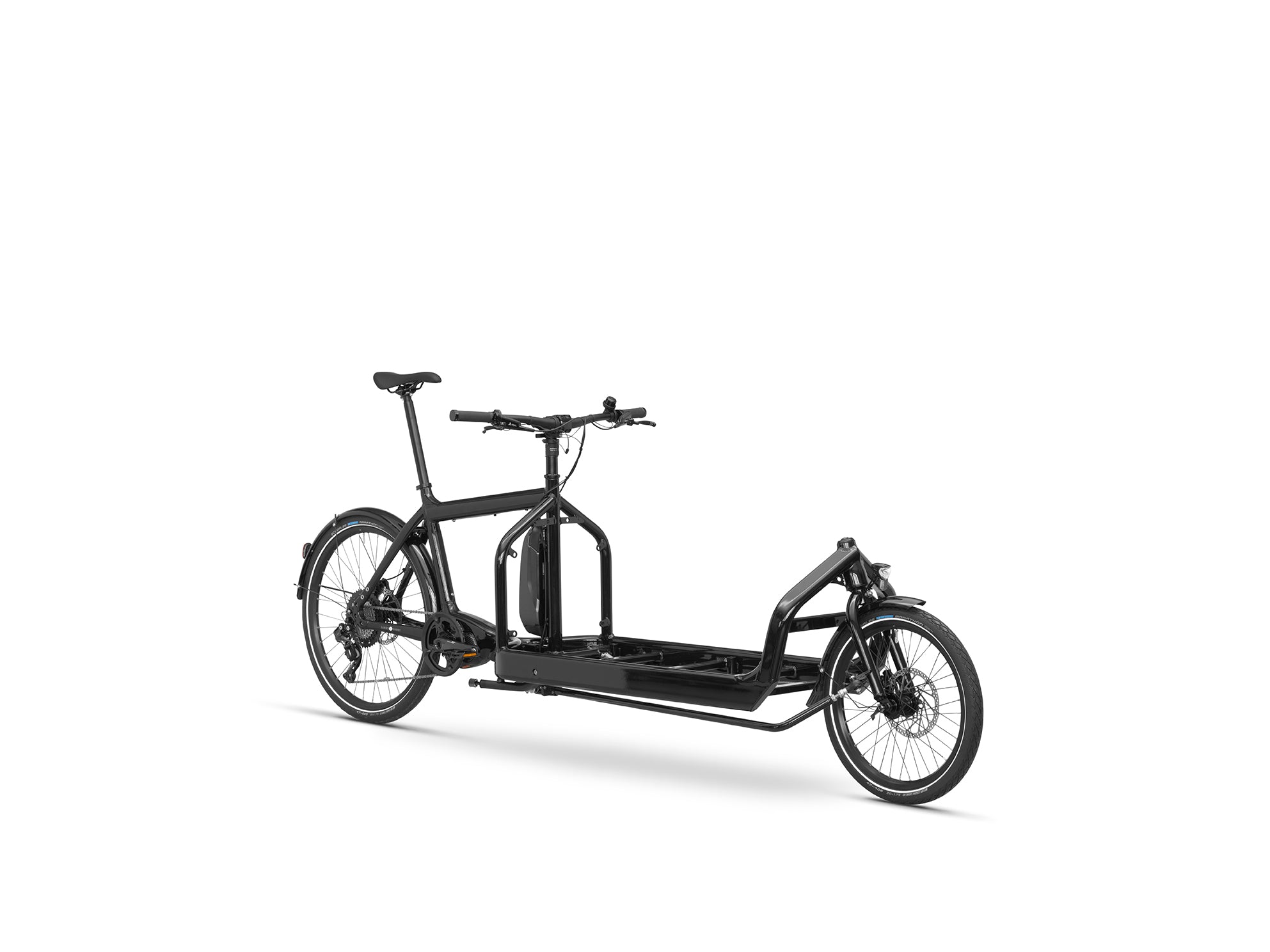

eBullitt EP801
Gearing options
Technical specifications
Last updated
2650mm
930mm
460mm
31 kg
204 kg
Read more about how this is calculated
T6 heat-treated, 7005 aluminium, designed for Shimano STePS motor
LARRY VS HARRY Chromoly steel fork with tapered steerer tube
1 ¼" FSA Orbit XII , 1 ½" tapered 1 ¼"
LARRY VS HARRY 22mm chromoly steel steering arm w/ balljoint & machined fittings
LARRY VS HARRY Aluminium dropouts, machined and replaceable (type depending on choice of gearing)
LARRY VS HARRY CroMo Kickstand – Chromoly Steel with adjustable and replaceable feet
SATORI Easy-Up w/ 100mm of adjustment
SHIMANO STePS EP801
Shimano Deore XT FC-M8150 175mm
25 km/h
85 Nm
SHIMANO BT-EN605 (504Wh) or BT-EN606 (630Wh)
SHIMANO 4 amp charger EC-E8004
SHIMANO display SC-EN600
SHIMANO Three-button Switch Units SW-EN600-L & SW-EN600-R
TRP Trail EVO e-MTB HD-M843 w 180mm/2.3mm rotors
NOVATEC hub, O.L.D. 10x100mm, laced to ALEXRIMS FR32 36h
SCHWALBE Marathon 20” and 26” x 1.75”
LARRY VS HARRY Brass Japanese Wind Bell, black
BUSCH & MÜLLER Lumotec front light and Secuzed rear light
